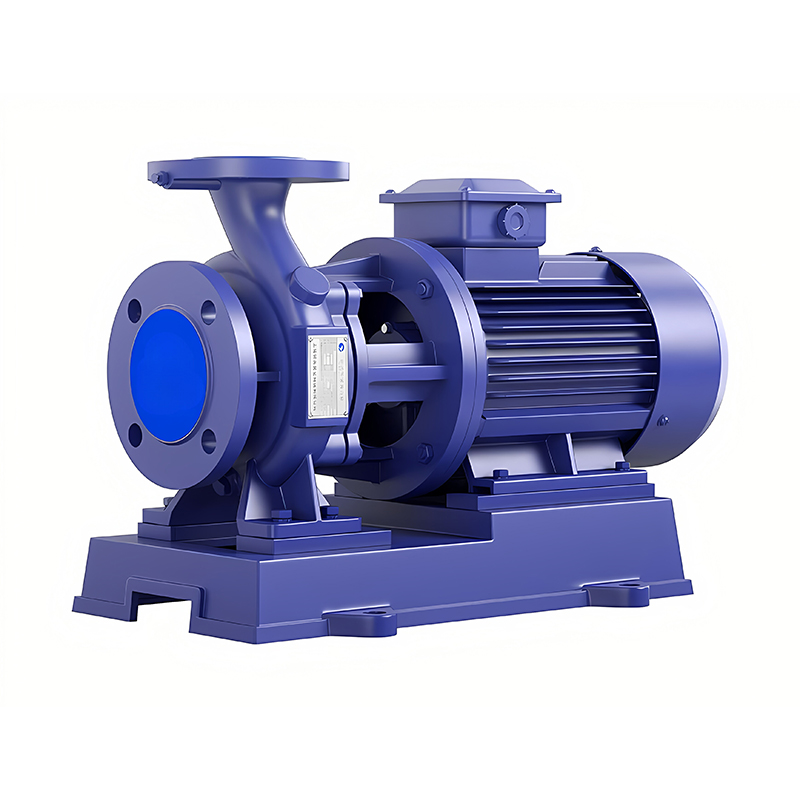

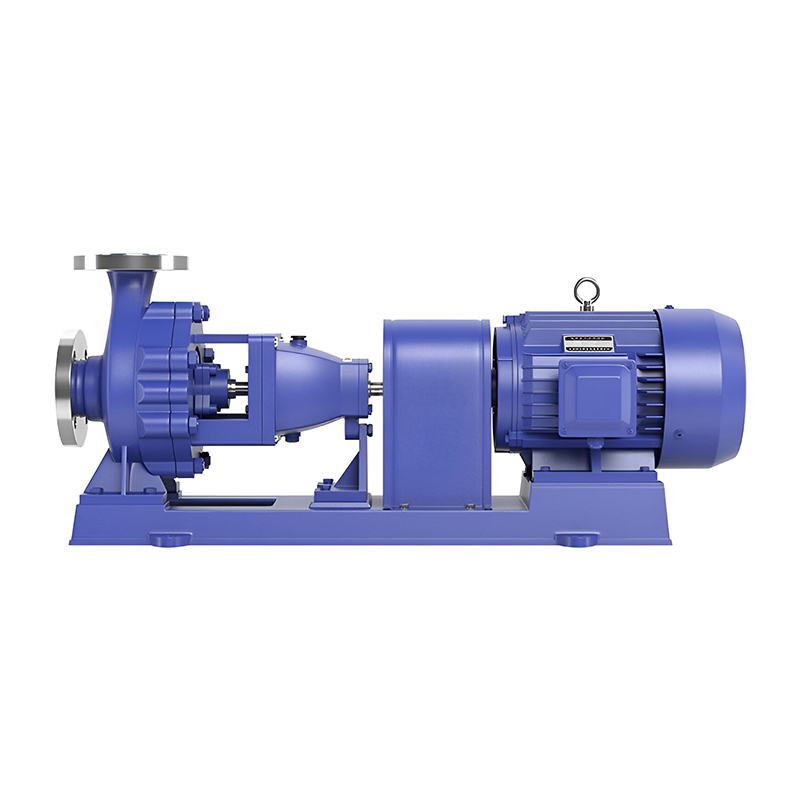

TCZ Chemical Process Pump

　　TCZ Chemical Process Pump is made up with the introduced advancded foreign know-how and of the horizontal, single-stage and single suction type of construction and both dimensions and performance conform with DIN24256/ISO2858 series, It is suitable for transporting low or high temperature liquid, neutral or corrosive liquids, clean or solid grains contained liquids. Specially applied for Chemical and petrochemical industries, Oil refinery, Paper and paper pulp industries, Sugar refine industry etc.

　　Design Features:

　　• The pressure acting on the shart seal is balanced with the balancing hole in the impeller or the auxiliary vane .

　　• The shaft seal can be either the mixed packing seal(cooled or not cooled) or the single or dual-face mechanical one of various structures(the balancing type).

　　• The ball bearing is durable andthe axle diameter is enough to make sure of stable running.

　　• The pump casing balancing the radial force.

　　• The bearing holder, including have the pump casing unnecessa ry to be removed from the pipeline for repair(the motor as well, if an extended axle is used).

　　• The flange design used PN16 and PN25 two kinds (upon the difference between materials), and ANSI125Lb/inch2 or 150Lb/inch2.

　　TCZ Chemical Process Pumps Performance Parameters:

　　TCZ Chemical Process Pumps On-site Applications:

　　• Sulphric acid and nitric acid of various temperatures and concentrations, salt acid and phosphoric acid etc. roganic and inorganic acids.

　　• Sodium hydroxide, sodium carbonate of alkaline solutions for various temperatures and concentrations.

　　• Various salt solutions.

　　• Various liquid petrochemical products, organic compounds and other corrosive raw materials and products.

　　* The corrosion-proof materials available in Tobee Pump now can meet with the requirements of the above various media. Please provide the detailed information about the media to be transported at order.

　　Typical medium: Hydrogen peroxide, Ammonia, Methanol, Propyl alcohol, Butanol, Ormaldehyde, Acetaldehyde, Propionic aldehyde, Butyric aldehyde, Dimethyl ether, Acetone, Methane, Ethane, Elayl, Propane, Tetrane, Gasoling, Coal oil, Triethanolamine, Vegetable oil, Soy bean oil, Corn oil, Cottonseed oil, Drinking water, High pure water, Sea water, Sulphuric acid, Hydrofluoric acid, Chromic acid, Boracic acid, 70-90% Sulphuric acid+nitric acid, Sodium hydroxide, Ammonium hydride, Sodium sulphate(PH>7), Sodium nitrate, Sodium carbonate, Solidum chloride (containing oxygen), Sodium cyanide, Sodium bicarbonate, Sodium silicate, Sodium citrate, Potassium sulphate, Potassiium nitrate, Potassium fluoride, Potassium cyanide, Heavy potassium chromate, Potassium permanganate, Lime chloride, Calcium fluoride, Inorganic acid, Fuming sulphuric acid, Nitric acid, Chlorhydric acid, Phosphoric acid, Hydrofluoric acid, Potassium hydroxide, Nitro-hydrochloric acid etc.
